Solder mask settings in Kicad

sandyi2c · July 15, 2025, 4:08pm

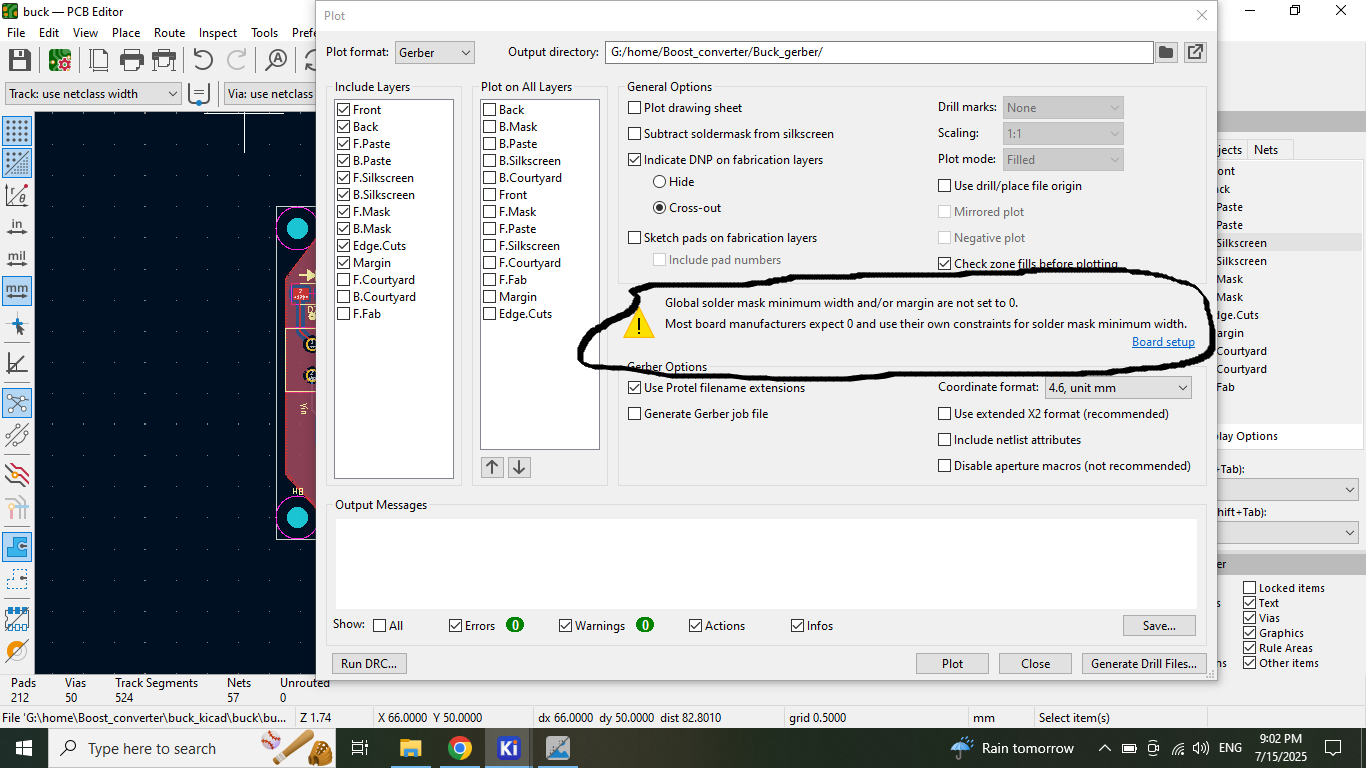

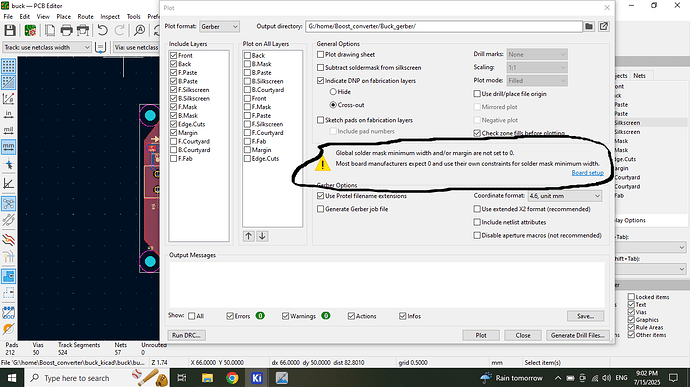

I would like to generate Gerber file but I have doubt in this settings. Could somebody please clarify

pcbcupid · July 16, 2025, 5:31pm

Can you post your board setup screenshot and the capability list of the manufacturer that you are planning on using. We can help you clear this warning.

sandyi2c · July 22, 2025, 5:05pm

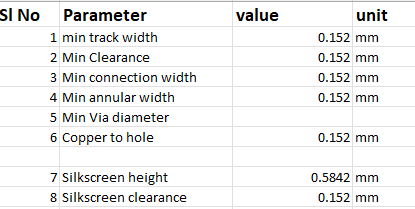

Please find capability list.

Please find my board setup and capability list.

sandyi2c · July 22, 2025, 5:05pm

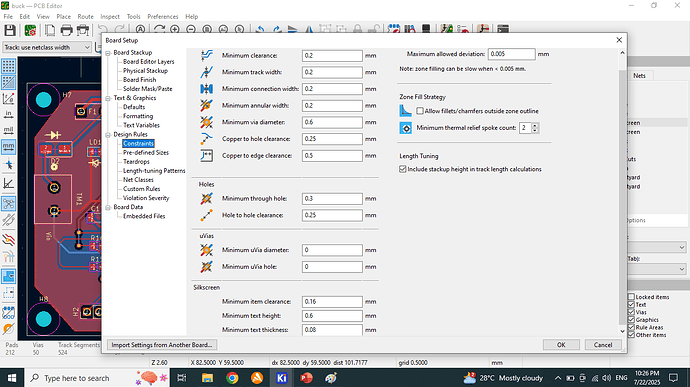

Board setup 1

sandyi2c · July 22, 2025, 5:07pm

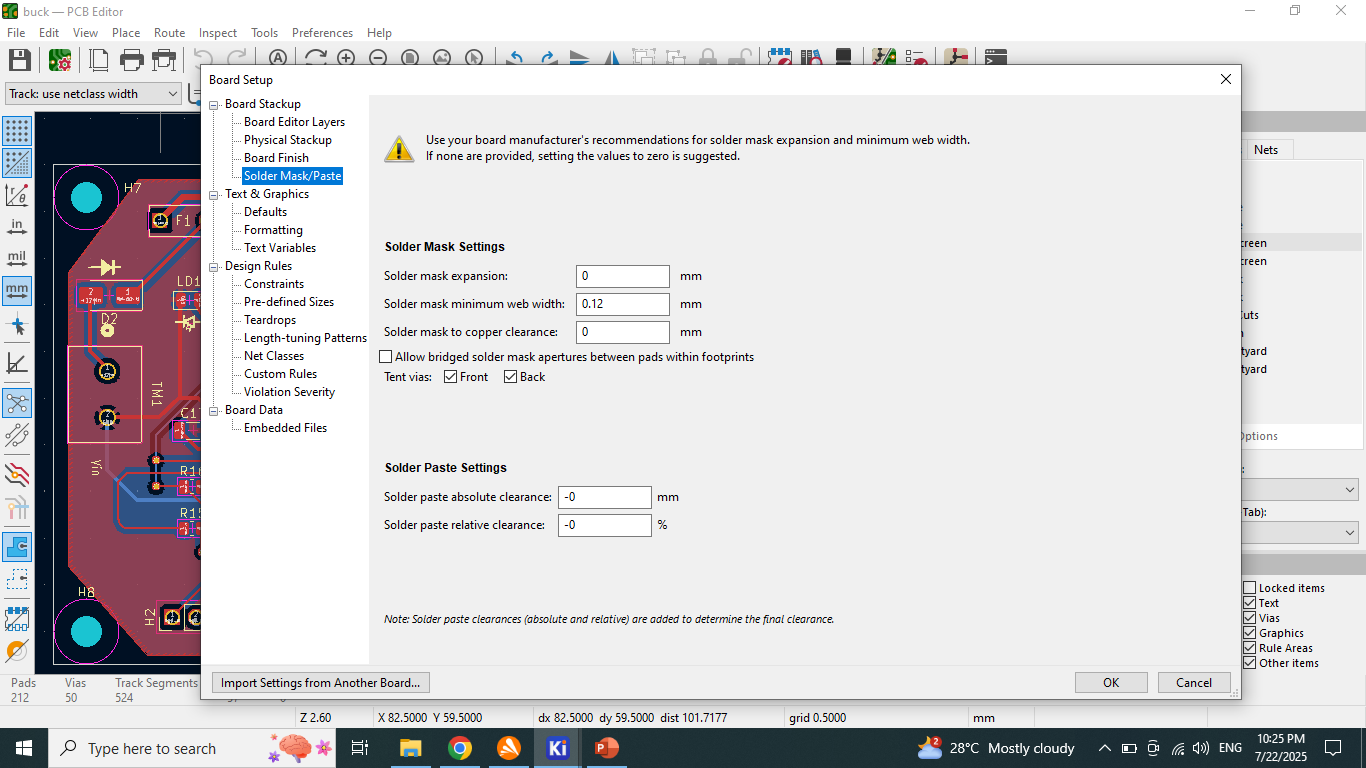

Board setup 2

pcbcupid · July 28, 2025, 7:42am

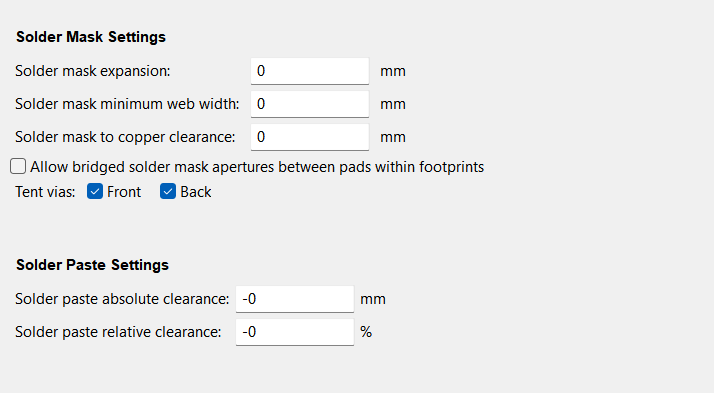

You can try this settings. It should remove the warnings.
