Wide TRaces causing problems, can't connect to Pins

PCB Layout
1

PCB Routing Problem
PCB Routing Problem1514×1040 149 KB

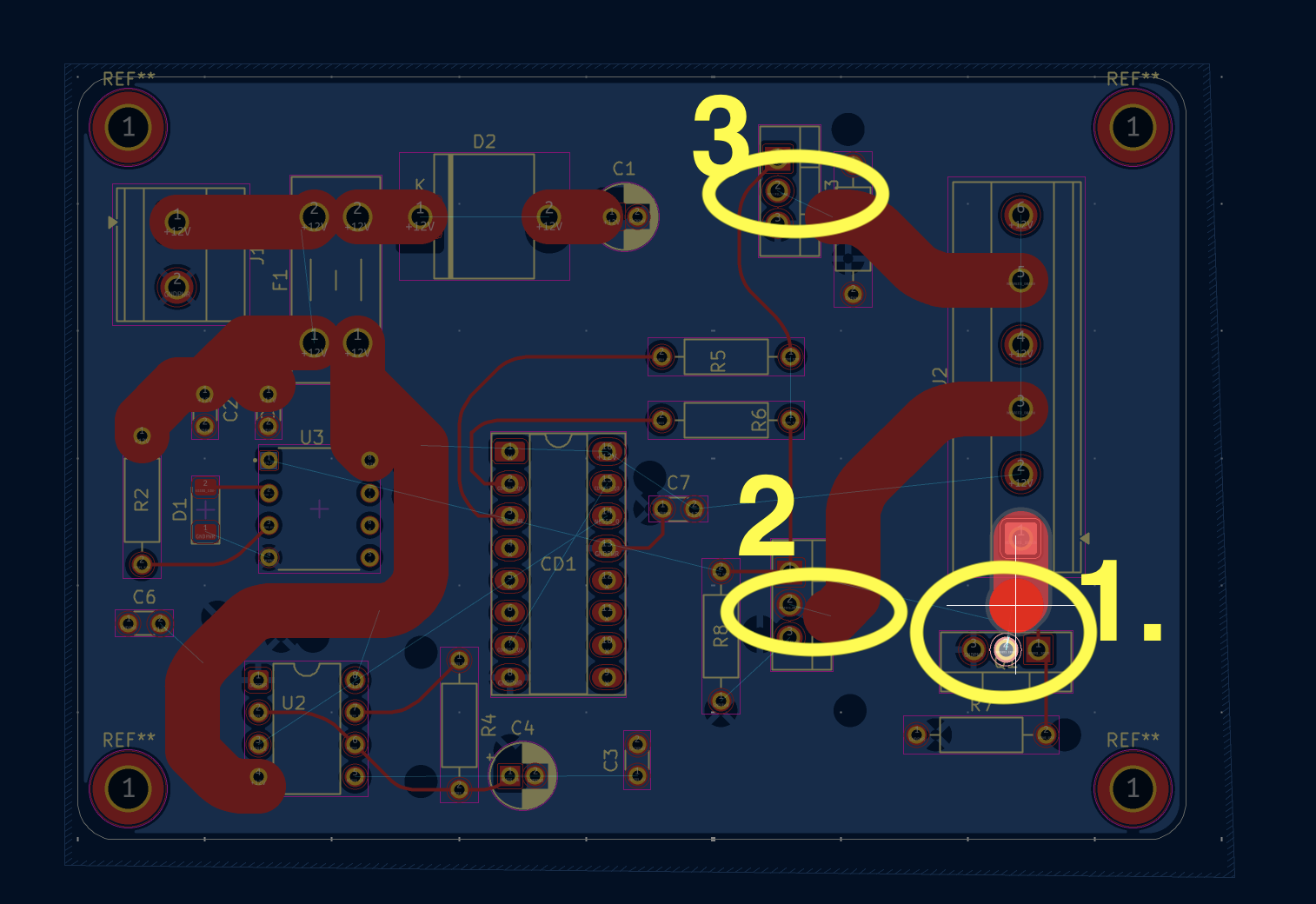

My design requires wide Power traces and return leads from LED COB Array to the MOSFET Drain. It seems I cannot connect several components on the board, but these three Drain connections illustrate the problem clearly.

It seems that the wide trace overlaps other pin positions.

I would appreciate help and suggestions.
THanks.

2

If your device requires a power trace that wide, then probably your are using a wrong connector. You need to check the rating of the connector if it supports the current you are looking for.

Probably go with a different connector with higher voltage and current, which will have a better pitch spacing.
